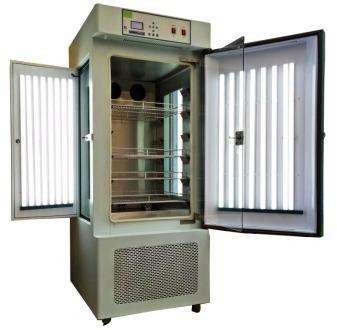

Plant Growth Chamber

Model: LPGC Series

Full-spectrum lighted chamber with programmable day/night cycles for plant and tissue growth studies.

Custom-built to your specifications
Pre-dispatch quality testing
Installation & training support
Comprehensive manufacturer warranty

Construction & Features

With a solid see thru double walled door and a full view inner plexi-
Glass door enables inspection and monitoring of inner chamber
Specimens without distributing the process temperature.
Excellent quality magnetic gum packing door gasket for external door.
User-oriented design of shelves makes you adjust each space of
Shelves without difficulty.
Forced air circulation at triple walled back by durable coaxial blower,
Maintains optimum temperature uniformity and homogeneity.
Foamed-in-place PUF insulation ensures thermal stability and
Reduces electrical energy consumption.
Caster wheel mounted for easy portability.
Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy
Visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostat to prevent overheating.
Fitted with exterior illumination with fluorescent tubes/lamps.
Works on 220/230 Volts AC (50/60 Hz frequency)

Applications

LFAS Many area of plant research requires the use of a controller environment. In this way, a plant's response to different conditions can be monitored, or a particular habitat imitated. Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate. Where micro propagation is being used a growth cabinet is essential for rooting the plantlets and adapting them to normal conditions. This plant growth cabinet is ideal for all routine propagation and research applications.

Technical Specifications

MODEL	LFAS-PGC-11	LFAS-PGC-17	LFAS-PGC-28	LFAS-PGC-34
Dimension Inner (WxDxH) (in mm)	455x410x610	505x415x830	570x550x875	650x580x900
Capacity	112 ltrs	171 ltrs	280 ltrs	350 ltrs
Volume	4Cuft	6Cuft	10 Cuft	12 Cuft
MOC Outer	Powder coated CRC Steel Sheet	Powder coated CRC Steel Sheet	Powder coated CRC Steel Sheet	Powder coated CRC Steel Sheet
MOC Inner	Chamber and trays made of Stainless Steel (SS-304)	Chamber and trays made of Stainless Steel (SS-304)	Chamber and trays made of Stainless Steel (SS-304)	Chamber and trays made of Stainless Steel (SS-304)
No. of Shelves	2	2	3	3
Type	Forced Convection Type	Forced Convection Type	Forced Convection Type	Forced Convection Type
Freezer Compressor	Hermetically sealed air cooling compressor system	Hermetically sealed air cooling compressor system	Hermetically sealed air cooling compressor system	Hermetically sealed air cooling compressor system
Temperature Range	10OC to 60OC	10OC to 60OC	10OC to 60OC	10OC to 60OC
Temperature Accuracy	+1OC TO +0.1OC	+1OC TO +0.1OC	+1OC TO +0.1OC	+1OC TO +0.1OC
Humidity Creation	Through sophisticated steam injection process.	Through sophisticated steam injection process.	Through sophisticated steam injection process.	Through sophisticated steam injection process.
Humidity range	5% above ambient from 40% to 95%RH at cool temperatures	5% above ambient from 40% to 95%RH at cool temperatures	5% above ambient from 40% to 95%RH at cool temperatures	5% above ambient from 40% to 95%RH at cool temperatures
Humidity Accuracy	+5%RH To +1%RH	+5%RH To +1%RH	+5%RH To +1%RH	+5%RH To +1%RH
Evaporator	Finned tube evaporator for faster cooling effects	Finned tube evaporator for faster cooling effects	Finned tube evaporator for faster cooling effects	Finned tube evaporator for faster cooling effects
Safety	Over temperature limiter switch prevents overheating	Over temperature limiter switch prevents overheating	Over temperature limiter switch prevents overheating	Over temperature limiter switch prevents overheating
Insulation	Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption	Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption	Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption	Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption
Illumination	Exterior illumination with fluorescent tubes/lamps.	Exterior illumination with fluorescent tubes/lamps.	Exterior illumination with fluorescent tubes/lamps.	Exterior illumination with fluorescent tubes/lamps.
Temperature Controller	Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value. (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller	Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value. (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller	Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value. (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller	Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value. (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller
Humidity Controller	Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller	Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller	Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller	Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller
Caster Wheel	Caster wheel mounted for easy portability.	Caster wheel mounted for easy portability.	Caster wheel mounted for easy portability.	Caster wheel mounted for easy portability.
Electrical Supply	220/230V AC, 50/60Hz	220/230V AC, 50/60Hz	220/230V AC, 50/60Hz	220/230V AC, 50/60Hz
