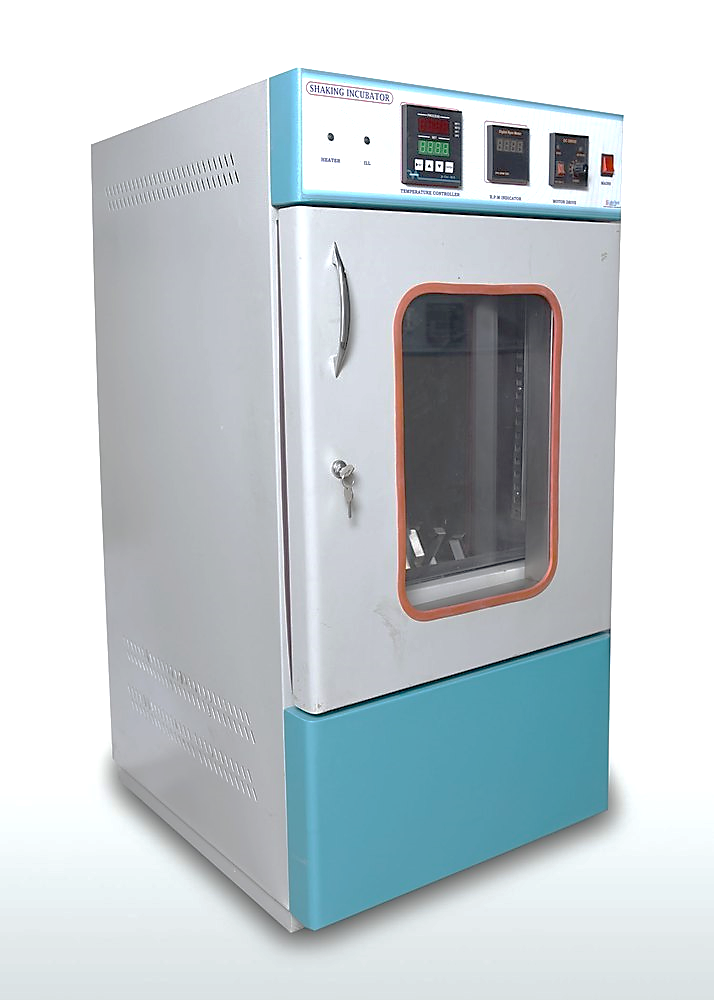

Orbital Shaker Incubator

Model: LOSI Series

Temperature-controlled orbital shaking incubator for cell culture, enzyme kinetics, and fermentation studies.

Custom-built to your specifications
Pre-dispatch quality testing
Installation & training support
Comprehensive manufacturer warranty

Applications

Useful for life sciences applications, Fermentation Studies,
Ageing Tests, Growth Studies and biological cultures under various
Controlled temperature conditions.
Advanced shaking mechanism provides quiet shaking and
Precise speed control with digital display.
Minimum noise, no vibration and minimal footprint.
Automatic stop of shaking system when door is opened.
Stabilized orbital motion under uneven load distribution.
Various configurations of stainless steel lotus clamps available for
Erlenmeyer flasks.
Interior made of Stainless Steel (304 grade) with a drain- off facility for
Spill overs.
One set of lotus clamp holders with one shaking platform of
Stainless steel (SS-304) supplied with the unit as a standard
Accessory.
Stationery shelves made of Stainless Steel (SS-304) for use of the unit
As a standard B.O.D. Incubator, can be supplied at extra cost.
Automatic restart at preset speed in case of power failure.

Technical Specifications

MODEL	LFAS-OSC-250	LFAS-OSC-250 (LCD)
MOC Outer	Powder Coated CRC Steel Sheet	Powder Coated CRC Steel Sheet
MOC Inner	Chamber and trays made of stainless steel (SS-304)	Chamber and trays made of stainless steel (SS-304)
Capacity	280Ltrs	280Ltrs
Volume	10Cuft	10Cuft
Temperature Control	Microprocessor Based Digital Temperature Indicator-cum-Controller	Microprocessor Based Digital Temperature Indicator-cum-Controller
Display	LED with Set Value (SV) and Process VALUE (PV)LCD with Set Value (SV) and Process VALUE (PV)	LED with Set Value (SV) and Process VALUE (PV)LCD with Set Value (SV) and Process VALUE (PV)
Inner Chamber Size (WxDxH) in mm	660x660x690mm	660x660x690mm
Insulation	High Density PUF insulation for tighter temperature controls	High Density PUF insulation for tighter temperature controls
Shaking Trays Size	510 x 510mm	510 x 510mm
Shaking Frequency	Upto 250rpm (adjustable)	Upto 250rpm (adjustable)
Shaking Amplitude	25mm	25mm
Type	Forced Convection Type	Forced Convection Type
Temperature Range	5̊C to 60̊C	5̊C to 60̊C
Temperature Accuracy	+0.50C	+0.50C
Safety	Over temperature limiter switch prevents overheating	Over temperature limiter switch prevents overheating
Cyclic Timer	Fitted with cyclic programmable timer.	Fitted with cyclic programmable timer.
Light Bank	Consisting of fluorescent lamps to provide illumination for photosynthetic applications	Consisting of fluorescent lamps to provide illumination for photosynthetic applications
Shaking Motion	Permanent Magnet DC Drive for continuous operations	Permanent Magnet DC Drive for continuous operations
RPM Display	DIGITAL DISPLAY	DIGITAL DISPLAY
