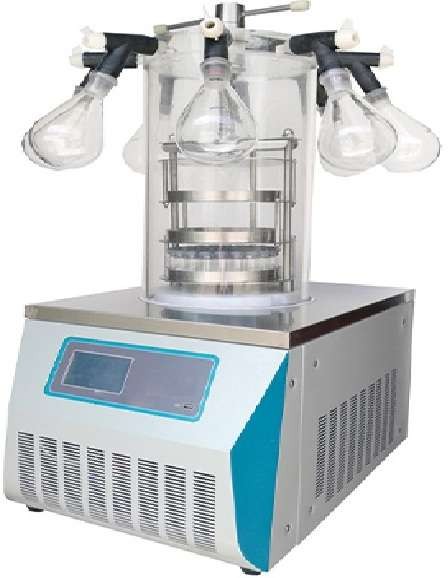

Freeze Dryer (Lyophilizer)

Model: LFD Series

Laboratory and pilot-scale lyophilizer for freeze drying of sensitive biologicals, vaccines, and reagents.

Custom-built to your specifications
Pre-dispatch quality testing
Installation & training support
Comprehensive manufacturer warranty

Product Overview

LFAS Freeze Dryer or Lyophilizer is a such a dehydration process in which is water is removed for the frozen sample using purified vacuum condition. This process is followed by first stage Sublimation (primary drying) and last stage Desorption (secondary drying). Inlyophilization process, where water in ice form on the frozen goodscan be directly lyophilized into steam without melting in advance, thus the goods are dried. The substances frozen can be well- preserved for a long time and returned to their former state once being watered without losing their biochemical properties. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymes and hormones.

Features

Specifications:

Technical Specifications

3 to 15 Liters ice capacities	-40°C or -80°C temperature
CFC refrigeration system	Precise vacuum control
Corrosion resistant construction	Audio visual alarm optional
Digital PID controller	Simple to install and operate
Wide range of accessories are available	Single or two stages cooling system
Front Loading (Tray Type)	Top Loading (Vacuum prove)
